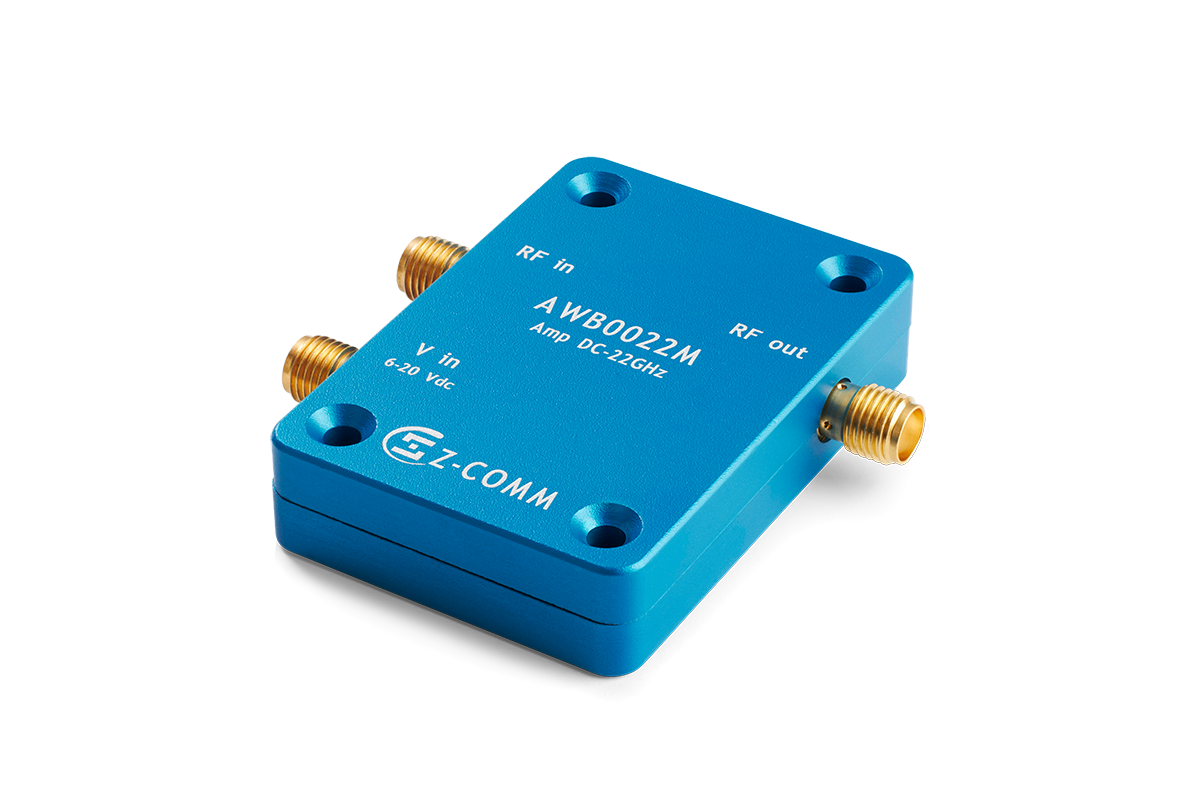

AWB0022M - DC to 22 GHz Wide Band Low Noise Amplifier
Description:
Introducing the AWB0022M Wide Band Low Noise Amplifier from Z-Communications Inc., designed to deliver exceptional performance across a wide frequency range from DC to 22 GHz. Ideal for applications including test and measurement, lab bench use, prototyping, and OEM integration, the AWB0022M is a versatile addition to any RF engineering toolkit.
Engineers will find the AWB0022M particularly valuable when paired with Z-COMM's SSG22645LX wide band frequency synthesizer (45 MHz – 22 GHz). Together, these devices enable seamless frequency generation and amplification across a vast range, offering output power between 15 and 20 dBm. With a maximum input power of +15 dBm, this low noise amplifier ensures high-performance signal clarity.
The AWB0022M is wideband low noise amplifier housed in compact connectorized package 2x1.4x .46 in. The amplifier operates from DC to 22 GHz and delivers greater than 13 dB of gain with a corresponding noise figure of 2.5 dB and output 1 dB compression point of +19 dBm at 10 GHz.
Features:
• Ultra Wideband Performance
• Low Noise Figure
• Excellent Return Losses
• Compact connectorized housing
