Phase Locked Oscillators
from 500 MHz to 20 GHz

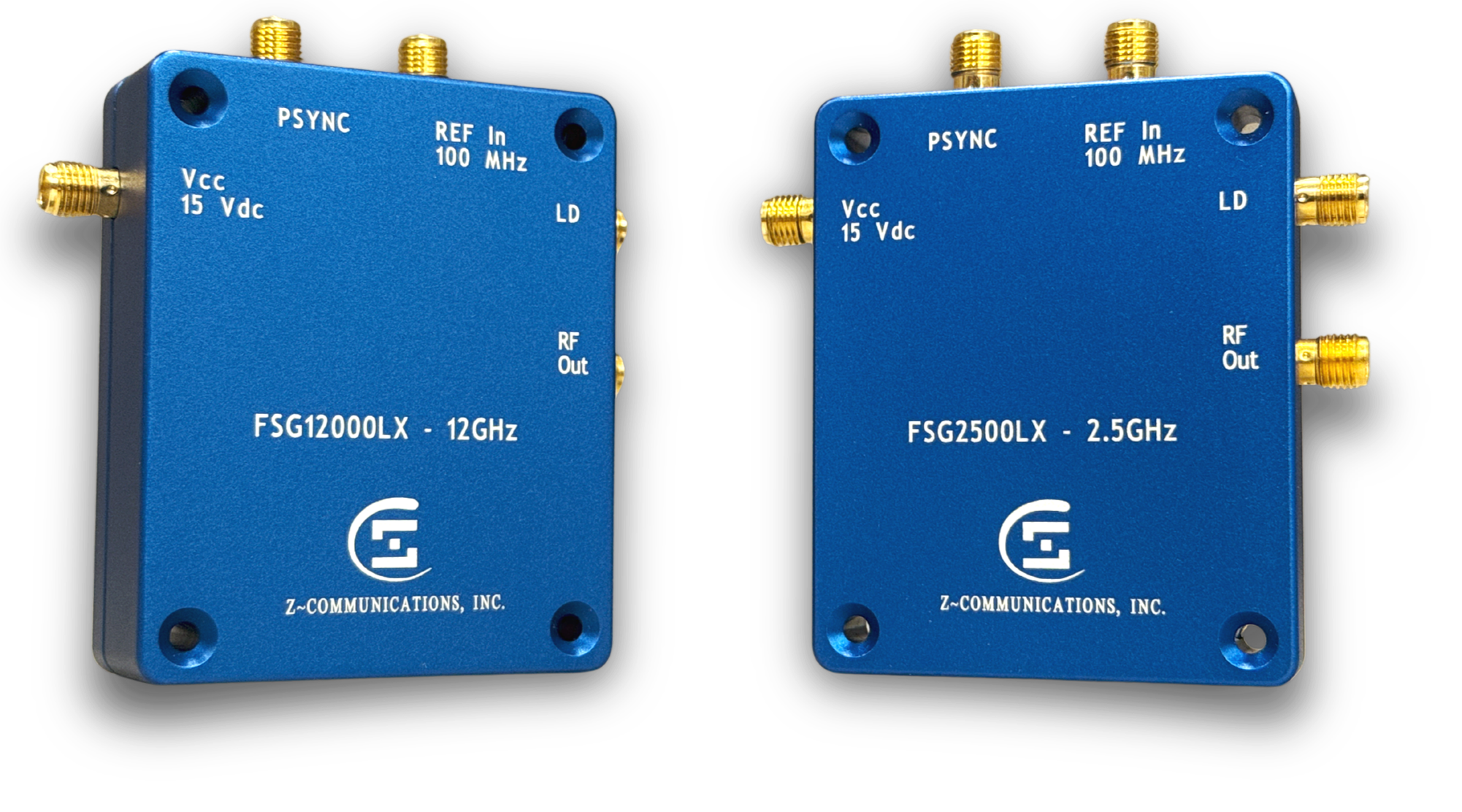

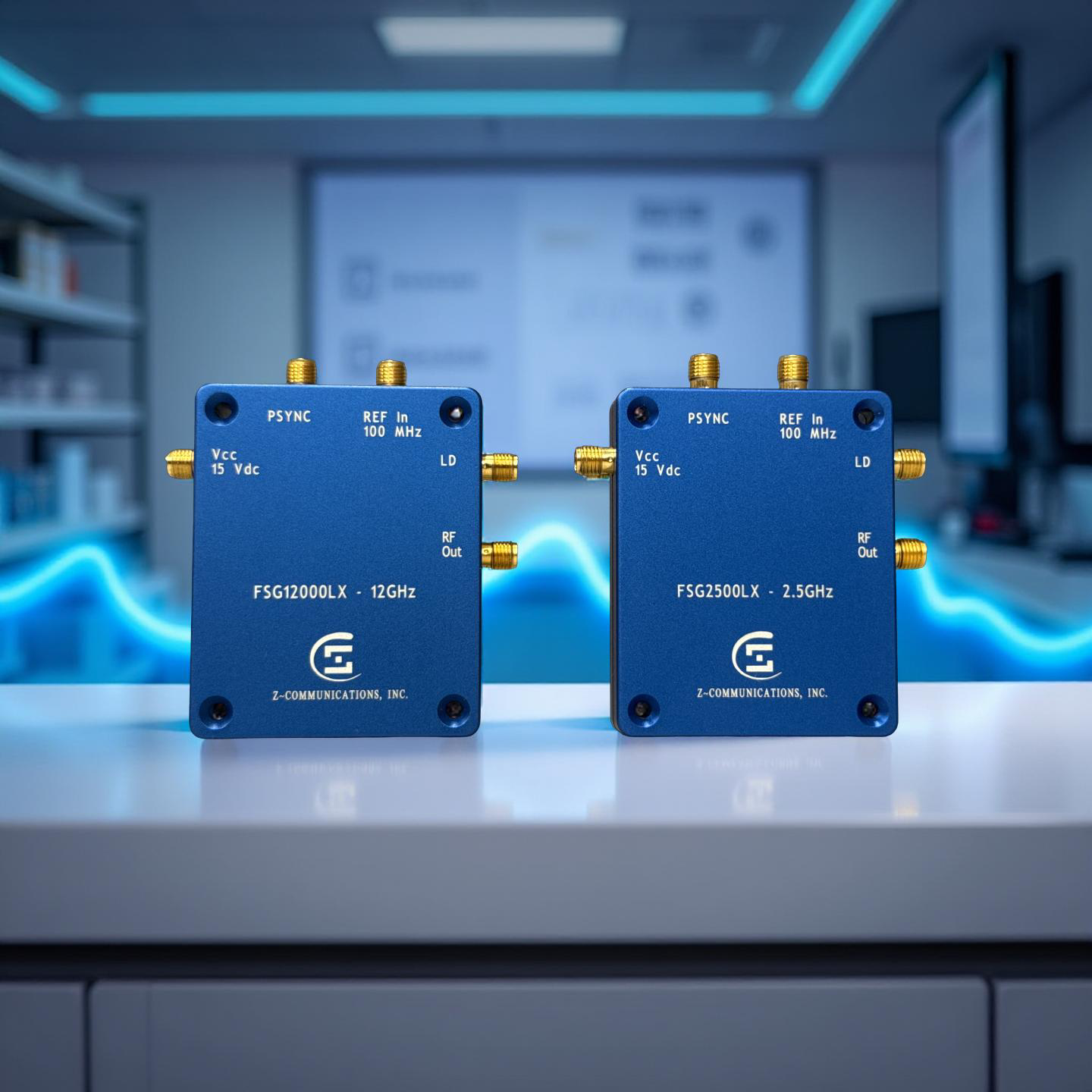

Z-Communications’ Blue Box series of Phase Locked Oscillators offers engineers precise testing performance in a compact, durable design-making it the ideal choice for reliable measurements in demanding environments.
Custom orders available!
Contact us with your specifications and receive your custom FSG within 0-2 weeks.
Most Popular
CRO Based Phase Locked Oscillators
| Model | Availability | Frequency (GHz) | Phase Noise dBc@10 kHz/Hz | Harmonic Suppression (2nd) (dBc) | Power (Typ dBm) | Refence input * (MHz) | Lock Detect (LD) Vdc | Sync Input (Psync) Vdc | Supply Vdc | Current (mA) | Operating Temperature (C°) | Size (LxWxH in) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FSG1000LX | Webstore | 1.0 | -121 | -20 | 19 | 100 | 3.3 | 3.3 V | 13-18 | 210 | -40 to +85 | 2.6x2.1x0.5 |
| FSG2000LX | Contact Us | 2.0 | -120 | -20 | 19 | 100 | 3.3 | 3.3 V | 13-18 | 210 | -40 to +85 | 2.6x2.1x0.85 |
| FSG2500LX | Webstore | 2.5 | -118 | -18 | 19 | 100 | 3.3 | 3.3 | 13-18 | 210 | -40 to +85 | 2.6x2.1x0.85 |
| FSG3000LX | Contact Us | 3.0 | -115 | -20 | -17 | 100 | 3.3 | 3.3 V | 13-18 | 210 | -40 to +85 | 2.6x2.1x0.85 |
| FSG4000LX | Contact Us | 4.0 | -115 | -20 | -17 | 100 | 3.3 | 3.3 V | 13-18 | 210 | -40 to +85 | 2.6x2.1x0.85 |
| FSG5000LX | Contact Us | 5.0 | -113 | -20 | -17 | 100 | 3.3 | 3.3 V | 13-18 | 210 | -40 to +85 | 2.6x2.1x0.85 |
| FSG6000LX | Contact Us | 6.0 | -110 | -20 | -17 | 100 | 3.3 | 3.3 V | 13-18 | 210 | -40 to +85 | 2.6x2.1x0.85 |
DRO Based Phase Locked Oscillators
| Model | Availability | Frequency (GHz) | Phase Noise dBc@10 kHz/Hz | Harmonic Suppression (2nd) dBc | Power (Typ dBm) | Refence input * (MHz) | Lock Detect (LD) Vdc | Sync Input(Psync) Vdc | Supply Vdc | Current (mA) | Operating Temperature (C°) | Size (LxWxH in) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FSG8000LX | Contact Us | 8 | -109 | -20 | 15 | 100 | 3.3 | 3.3 V | 13-18 | 210 | -40 to +85 | 2.6x2.1x0.85 |
| FSG9000LX | Webstore | 9 | -109 | -20 | 14 | 100 | 3.3 | 3.3 V | 13-18 | 210 | -40 to +85 | 2.6x2.1x0.85 |
| FSG10000LX | Contact Us | 10 | -108 | -18 | 19 | 100 | 3.3 | 3.3 | 13-18 | 210 | -40 to +85 | 2.6x2.1x0.85 |
| FSG11000LX | Webstore | 11 | -107 | -20 | 14 | 100 | 3.3 | 3.3 V | 13-18 | 210 | -40 to +85 | 2.6x2.1x0.85 |
| FSG12000LX | Webstore | 12 | -107 | -20 | 14 | 100 | 3.3 | 3.3 V | 13-18 | 210 | -40 to +85 | 2.6x2.1x0.85 |
| FSG13000LX | Contact Us | 13 | -105 | -20 | -14 | 100 | 3.3 | 3.3 V | 13-18 | 210 | -40 to +85 | 2.6x2.1x0.85 |
| FSG14000LX | Contact Us | 14 | -105 | -20 | -14 | 100 | 3.3 | 3.3 V | 13-18 | 210 | -40 to +85 | 2.6x2.1x0.85 |
