Smart PLL Frequency Synthesizer w/ Amplifier | 45 MHz - 22.6 GHz | At 8 GHz P/N -105 dBc/Hz@10kHz | SSG4522ALX

$2,500.00

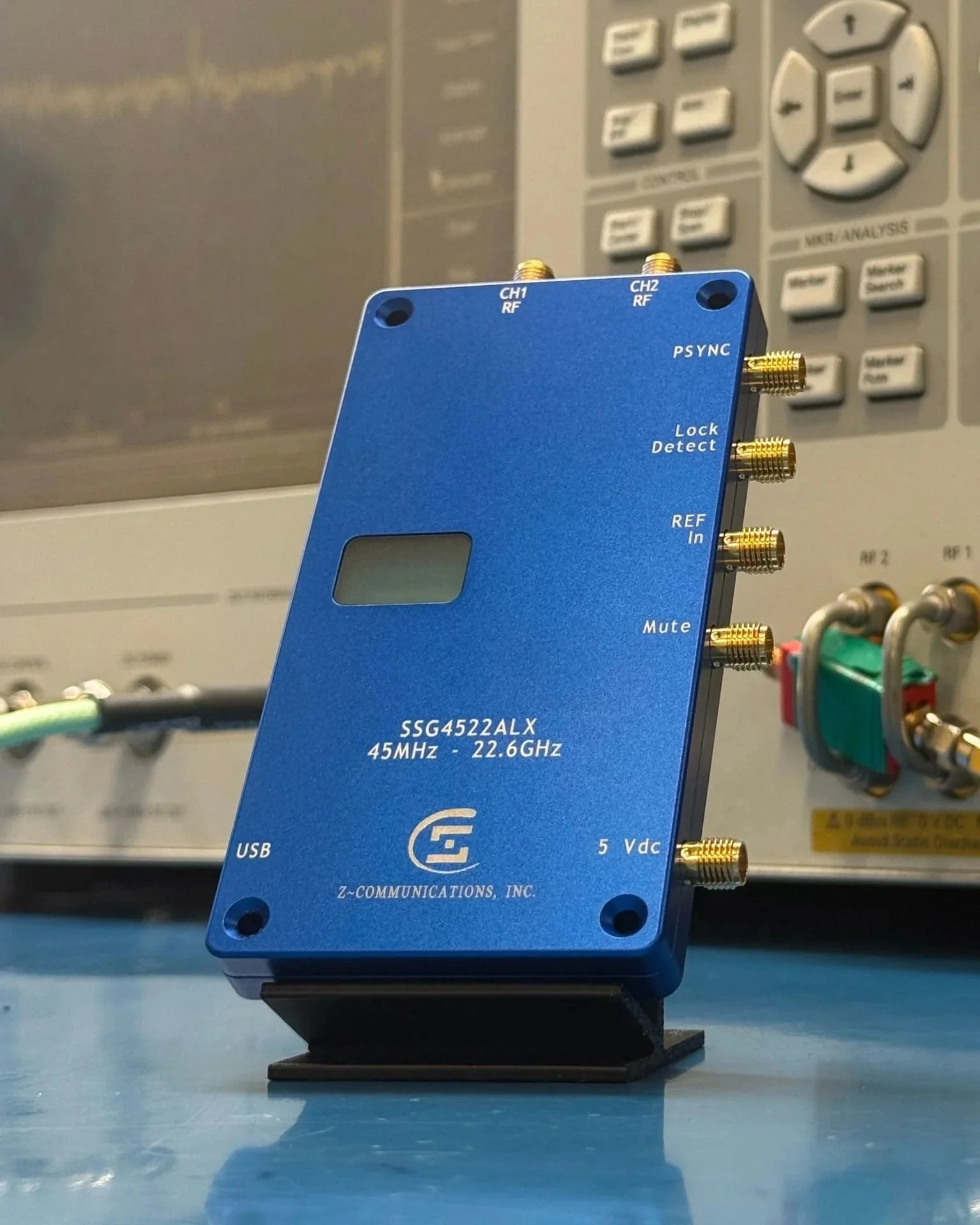

The SSG4522ALX boasts several unique features such as dual frequency outputs with independent control, and onboard amplifier, power attenuation from 3dB to 24dB, 3 frequency sweep modes - single sweep, repeat sweep(continuous), and cycle sweep, each with frequency start/stop, step size and dwell time.

The unit comes complete with a 100MHz internal reference for immediate use out of the box, or the user may utilize the external input for their preferred 100MHz reference. This version of the SSG features SMA connectors for Lock Detect, Mute, and Psync.

The SSG4522ALX is powered with 5Vdc through either USB-C or SMA. Control of all functions are made with a convenient smart phone app using Bluetooth (iOS and Android), or through a Windows PC via the USB-C power port. Each unit may be uniquely named using either interface, with all settings displayed on screen. A series of LEDs provide a visual cue of functions such as power, lock indication, and Bluetooth connection. For advanced users planning to use the SSG4522ALX Smart Synthesizer in automated test set ups with LabVIEW or other programs, advanced commands through UART is provided.

Data Sheet: SSG4522ALX

iOS Smart PLL Software

Windows Smart PLL Software

The SSG4522ALX boasts several unique features such as dual frequency outputs with independent control, and onboard amplifier, power attenuation from 3dB to 24dB, 3 frequency sweep modes - single sweep, repeat sweep(continuous), and cycle sweep, each with frequency start/stop, step size and dwell time.

The unit comes complete with a 100MHz internal reference for immediate use out of the box, or the user may utilize the external input for their preferred 100MHz reference. This version of the SSG features SMA connectors for Lock Detect, Mute, and Psync.

The SSG4522ALX is powered with 5Vdc through either USB-C or SMA. Control of all functions are made with a convenient smart phone app using Bluetooth (iOS and Android), or through a Windows PC via the USB-C power port. Each unit may be uniquely named using either interface, with all settings displayed on screen. A series of LEDs provide a visual cue of functions such as power, lock indication, and Bluetooth connection. For advanced users planning to use the SSG4522ALX Smart Synthesizer in automated test set ups with LabVIEW or other programs, advanced commands through UART is provided.

Data Sheet: SSG4522ALX

iOS Smart PLL Software

Windows Smart PLL Software

The Z-COMM SSG series of Smart Phase Locked Loop (PLL) modules provide high performance in a compact, all metal package suitable for any number of applications. Fully programmable through a unique Bluetooth interface, or USB cable, the user may adjust functions such as frequency, sweep mode, dwell time, step size, and power output, among others. LED indicators provide a visual cue of the status of the various functions. It’s rugged enclosure lends itself to in-field use as well as bench top testing. The highly reliable output signal, excellent phase noise, and flexibility of an internal reference or input for an external reference, provides RF Engineers with an adaptable RF tool.
